BTS250760

BTS250760-OD25mm-1178mm

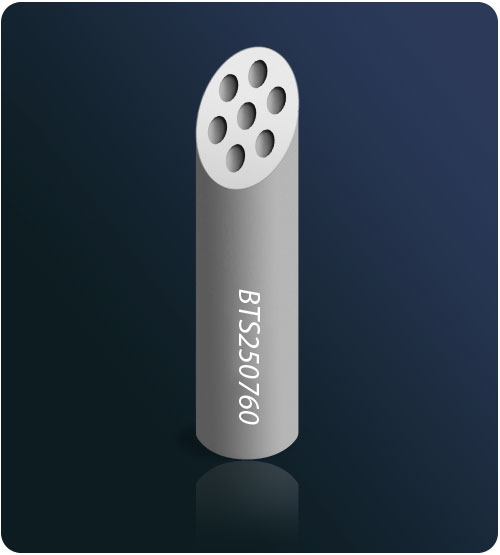

Ceramic membrane element with 7 channels, diameter 6.0 mm, outer diameter 25 mm and total length 1178 mm.

  • Ceramic membrane: BTS250760
  • Pore size: 500/200/100/50/30 нм
  • Material: 99% α-Al2O3/ ZrO2
  • Outer diameter: 25 mm
  • Channel number: 7
  • Channel diameter: 6.0 mm
  • Total length: 1178 mm
  • Memebrane area: 0.155 m²
  • Net weight: 1.15 kg
  • Permeate flow direction: inside-out
  • pH range: 0-14
  • Temperature: <150°С
  • Water flux: 300-2000L/m².h
  • Operation pressure: up to 1MPa
BTS250760-Ceramic membrane element with 7 channels, diameter 6.0 mm, outer diameter 25 mm and total length 1178 mm.
Ceramic membrane dimensional characteristics

Dimensional characteristics

 Outer diameter В, mm Channel diameter С, mm Standard length А, mm
25 6,0 1178
