Plastic rings RING-T

Plastic rings RING-T

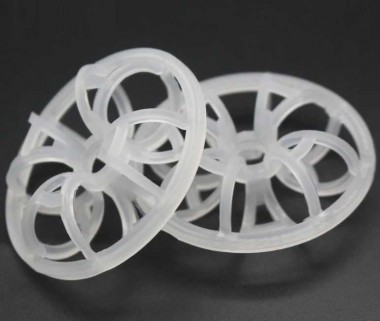

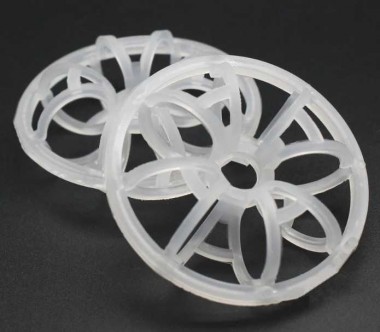

Description of Rosette plastic ring

A.J. Teller from the USA in 1954 first invented the plastic Rosette ring, and therefore, it is also often referred to as the Rosette Teller ring. This filler consists of many rings formed around the node to fill the gap for longer liquid retention, the liquid in the column may stay longer, which increases the two-phase gas-liquid contact time, improves mass transfer efficiency nozzles. Polypropylene packing with porosity, pressure drop and low height of the mass transfer unit, high sump point, full vapor-liquid contact, low to high capacity ratio and mass transfer. Used in gas scrubbers and scrubbers.

Physicochemical characteristics

The plastic packing column can be made from heat resistant and chemically corrosion resistant plastics including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). The temperature in the working environment ranges from 60 °C to 280 °C.

Size Nominal size Specific surface area Coefficient voids
mm m²/m³ ft²/ft³ %
S 47 185 56.4 88
M 73 127 38.7 93
L 95 99 30.2 94
