Valve trays are widely used in the petrochemical and alcohol industry, with column diameters from 0.5 to 10.2 m, with an inter-valve distance from 170 to 1100 mm, a design - from single-flow to six-flow and a quantity-from several pieces to more than 200. The ADV® plate is also used in vacuum and high-pressure systems. The main advantages of these plates are the ability to provide efficient mass transfer in a large range of workloads, simple design, low metal consumption and low cost. High-performance valve plates of a new type, developed on the basis of traditional plates and are characterized by optimization of the design of the valve and the plate as a whole, increased productivity and efficiency, as well as increased operational flexibility.

A new high efficiency type of valve trays design is based on traditional trays. It features improved design of a valve and a tray as a whole, increased capacity, efficiency and operation flexibility.

EDV Valve
EDV Valve Tray
EDV Valve Tray

ADV™ Valve

ADV™ Valve Tray

Main features:

  • Non-revolving valve with top canopies
  • “Quick-Connect” active tray joints
  • Inlet bubble promoter
  • New-design of downcomer

Main advantages:

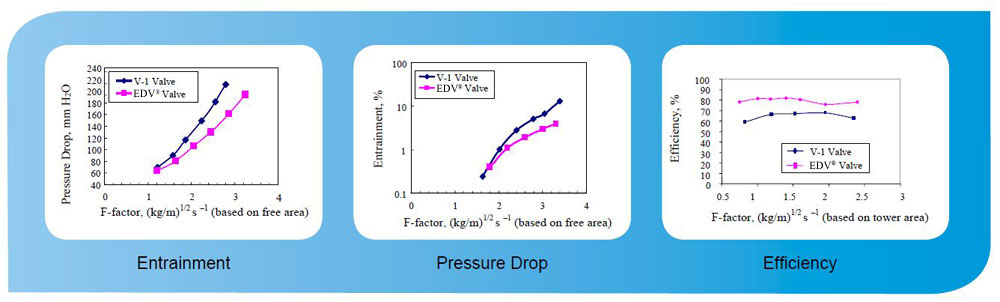

  • 40% (or more) higher capacity
  • 10-20% more efficiency
  • >10% lower pressure drop
  • 30-50% greater flexibility
  • Minimum modification in reconstruction
  • Easy to install and maintain


Application:

Refining and Petrochemical

  • Crude oil distillation
  • FCCU (Fluid catalytic cracking unit)
  • Recovery and separation of light hydrocarbons
  • Water treatment
  • Delayed coking
  • Desulfurization
  • Sulfur recovery
  • Reformation and separation of aromatic residue
  • Ethylene unit
  • Styrene unit
  • Phthalic anhydride
  • MTBE (Methyl Tertiary Butyl Ethyl) unit
  • Butadiene unit
  • Isoprene unit
  • Dehydrogenation of light hydrocarbon

Coal Chemical and Other Chemicals

  • Coal gasification
  • Coal gasification
  • Methanol unit
  • Water treatment
  • Methanol-to-Olefin (MTO) distillation
  • Acetic acid and ester unit
  • PTA plant
  • Acrylonitrile plant
  • Propylene oxide
  • Polysilicon plant
  • BDO unit
  • MEK unit
  • Ethylene glycol unit
  • Natural gas De-H2S and De-CO2
  • Polyester plant
  • Fine chemicals

Environmental Protection

  • Solvent recovery
  • Waste water treatment
  • Off gas recovery and treatment

1. Non-revolving Valve with Top Protrusions

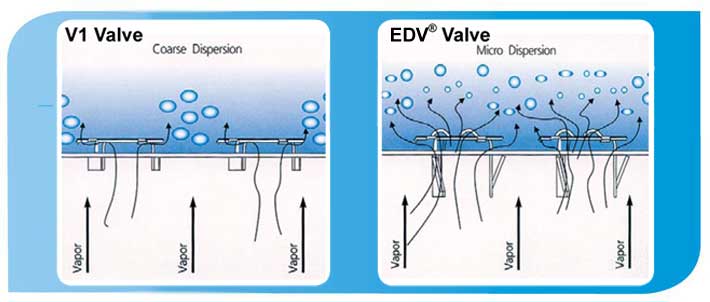

Top protrusions make vapour dispersion more uniform and fine, which improves efficiency. The anti-spin valve hole prevents valve rotating like V1 valve, and valve falling from the hole, which occurs when the valve legs become overly worn.

Non-revolving Valve with Top Canopies

2.“Quick-Connect” Active Tray Joint

The patented "Quick-Connect" active tray joint allows easy on-site installation and eliminates inactive tray zones typical for all other trays. This creates a more “effective active zone” and eliminates liquid bypass.

“Quick-Connect” Active Tray Joint

3.Inlet Bubble Promoter

The ADV® tray has a unique inlet bubble promoter to allow froth initiation near the inlet area of the active panels. The froth initiation helps to minimize or eliminate liquid gradient on the tray and promotes uniform froth distribution across the entire tray active area. This results in higher tray capacity and operating flexibility.

EDV

4. New-Design Downcomer

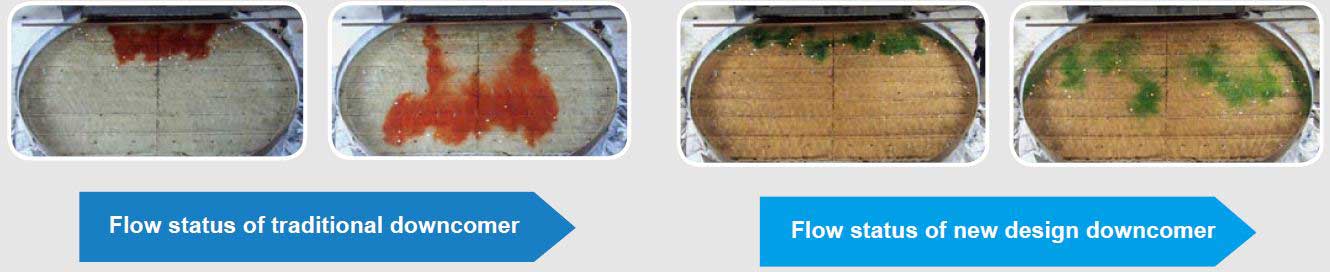

New-design downcomer with directional flow promotion helps to eliminate stagnant liquid pools on the tray and promotes uniform liquid penetration and froth density across the entire bubbling area. Directional flow promotion prevents fouling material settling on the tray deck and extends the column run time.

New-design Downcomer

Heat Patterns

ADV® Tray List

EDV® Valve Tray (EDV®)

1. ADV® Valve Tray (ADV®)

  • Floating round valve with top protrusions for fine dispersion
  • High efficiency, capacity, and operating flexibility
  • For wider operating flexibility, heavy ADV® valve (ADV®-H ) can be used together with ADV®
EDV® Rectangular Valve Tray (EDV®-R)

2. ADV® Rectangular Valve Tray (ADV®-R)

  • Floating round valve with top protrusions for fine dispersion
  • Directional ADV®-R valve (ADV®-RD) can be used in conjunction with ADV®-R for directional flow promotion using a directional valve leg
  • For more flexible operation, heavy ADV®-R valve (ADV®-RH ) can be used together with ADV®-R
EDV® Fixed Valve Tray (EDV®-F)

3. ADV® Fixed Valve Tray (ADV®-F)

  • Floating round valve with top protrusions for fine dispersion
  • More flexible and efficient than a conventional sieve tray
  • Suitable for fouling and coking systems
  • Non-top (ADV®-F0) or one-top (ADV®-F1) protrusion valve is available for different operational needs
EDV® Rectangular Fixed Valve Tray (EDV®-FR)

4. ADV® Rectangular Fixed Valve Tray (ADV®-FR)

  • Fixed valve tray with three top canopies for fine dispersion
  • More flexible and efficient than a conventional sieve tray
  • Suitable for fouling and coking system
  • Single top protrusion valve (ADV®-FR1) is available for different operational needs
EDV® Combinatorial Valve Tray (EDV®-C)

5. ADV® Combinatorial Valve Tray (ADV®-C)

  • Combinatorial valve with a fixed round valve as the base valve and a floating round valve as the top valve
  • Top valves close in the case of low vapor loading. This allows the tray operate more flexibly
  • Combines the advantages of a fixed valve tray and a floating valve tray. It is flexible and has high mass-transfer efficiency
  • Suitable for fouling and coking system
EDV® Rectangular Combinatorial Valve Tray (EDV®-CR)

6. ADV® Rectangular Combinatorial Valve Tray (ADV®-CR)

  • Combinatorial valve with a fixed round valve as the base valve and a floating round valve as the top valve
  • Top valves close in the case of low vapor loading. This allows the tray operate more flexibly
  • Combines the advantages of a fixed valve tray and a floating valve tray. It is flexible and has high mass-transfer efficiency
  • Suitable for fouling and coking system
Scalloped EDV® Valve Tray (EDV®-S)

7. Scalloped ADV® Valve Tray (ADV®-S)

  • Floating round valve with scalloped lace and top canopies
  • Vapor jets from side scalloped lace and top canopies for fine dispersion and to reduce pressure drop
  • The valve hole of ADV®-S is smaller than that of a conventional valve. This makes ADV®-S especially suitable for low-vapor scenarios where high efficiency is required
  • With ADV®-SH round heavy valve, a Scalloped ADV® valve tray operates higher capacity and flexibility
EDV® Mini Valve Tray (EDV®-M)

8. ADV® Mini Valve Tray (ADV®-M)

  • Floating mini round valve
  • The Valve hole is smaller than that of an ADV®-S valve
  • Adaptable to scenarios where there is very low vapor and high efficiency is required
EDV® Mini Rectangular Valve Tray (EDV®-MR)

9. ADV® Mini Rectangular Valve Tray (ADV®-MR)

  • Floating Mini rectangular valve
  • The valve hole is smaller than that of a conventional valve
  • Adaptable to scenarios where there is very low vapor and high efficiency is required
